Grade Beam.

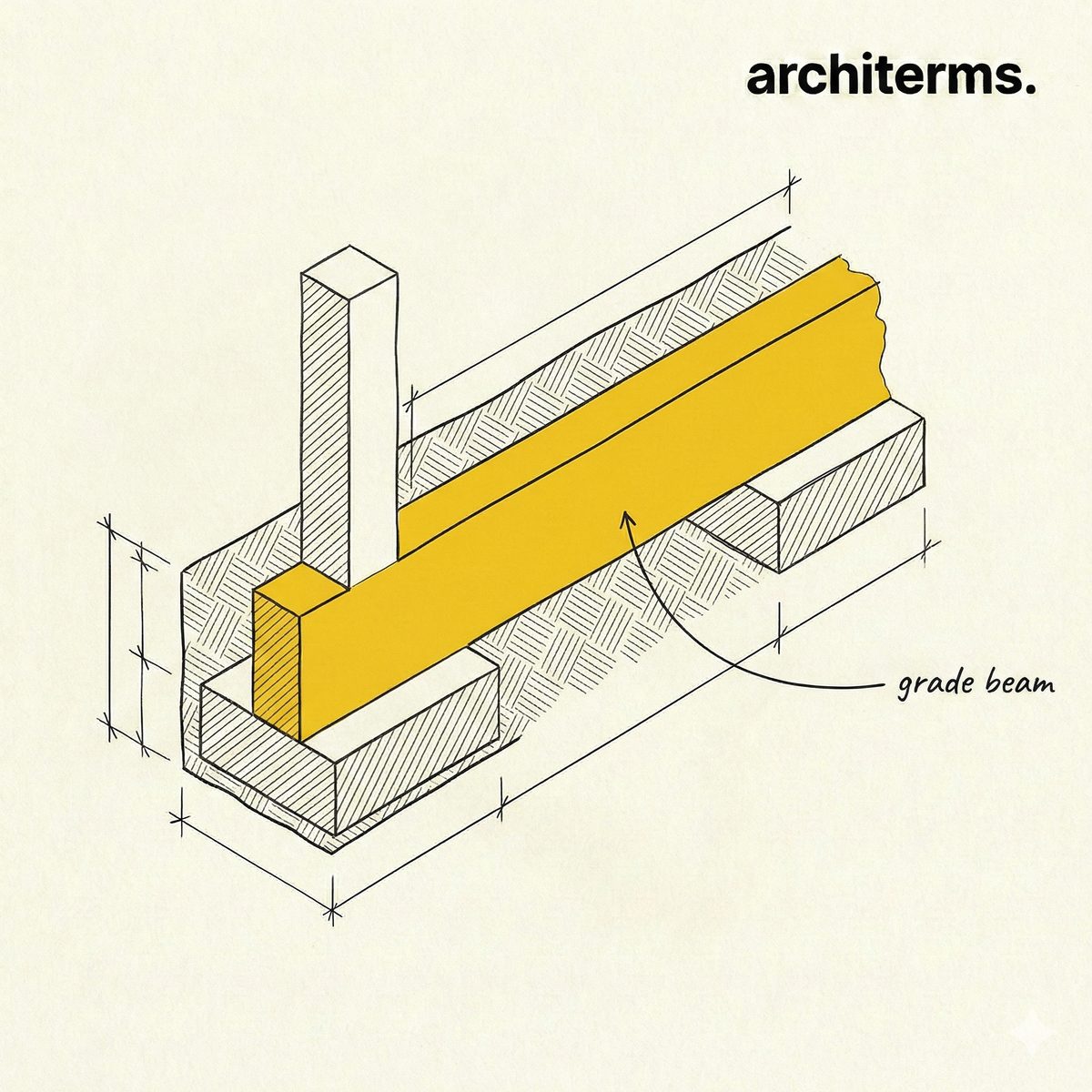

A grade beam is a horizontal, reinforced concrete member positioned at or slightly below finished grade that transfers loads from a building's superstructure to a system of deep or spread supports. Rather than resting on continuous soil like a conventional strip footing, a grade beam spans between discrete bearing points such as a Pile Foundation, drilled piers, or isolated pads. In doing so it behaves structurally as a Beam in bending, using longitudinal Rebar and stirrups to resist the tension and shear that develop as the member spans across unsupported ground. Grade beams commonly support Load Bearing Wall assemblies, column bases, and exterior perimeter walls, tying the lowest level of a structure into a rigid, coordinated foundation frame.

The grade beam emerged as a distinct structural element alongside the wider adoption of reinforced concrete in the late nineteenth and early twentieth centuries. Before reinforced concrete, builders on poor soils relied on stone or masonry footings, deep excavation, or timber piling capped with heavy sills to bridge unstable ground. These solutions were labor-intensive and limited in span. Once engineers understood how to combine concrete's compressive strength with the tensile capacity of embedded steel, it became practical to design a slender concrete member that could span horizontally between widely spaced supports without cracking.

As deep foundation techniques matured, particularly the driven and cast-in-place pile, the grade beam became the natural companion to the pile cap. Instead of building a continuous wall footing across ground that could not support it, engineers cast beams that carried the wall loads to the pile heads. Expansive clays in regions such as the American South and Southwest drove further refinement: builders discovered that a grade beam could be cast over a void form or crushable material so that swelling soil would not lift and crack the foundation. This void-form detail, developed through the mid-twentieth century, remains a standard method for isolating structures from problematic soils. The evolution of the grade beam parallels the broader story of how the properties of reinforced concrete reshaped the way foundations are conceived.

In contemporary practice, grade beams appear in a wide range of building types, from single-family houses on expansive soil to large commercial and industrial structures founded on piles. On a typical pile-supported building, grade beams frame the perimeter and interior gridlines, connecting pile caps and creating a continuous base onto which walls and columns are set. This network of beams stiffens the foundation, helps resist lateral movement, and distributes concentrated Column loads so that no single support is overloaded. Where a Footing alone would be inadequate, the grade beam extends the reach of the structural system into competent soil far below.

Architects and engineers also value grade beams for their role in coordinating with other elements at the base of a building. A grade beam frequently anchors the bottom of a Shear Wall, transmitting overturning forces into the foundation, and it can serve as the ledge that receives a ground-floor slab. In seismic and high-wind regions, grade beams tie isolated footings together so the foundation moves as a unit rather than allowing individual supports to shift independently. On sloping or unstable sites, they may work in tandem with a Retaining Wall to manage both vertical loads and lateral earth pressure. Because the beam is largely hidden below grade, it rarely expresses itself visually, yet it quietly governs the dimensional discipline of everything built above it.

Modern detailing gives close attention to reinforcement continuity, concrete cover for durability, and protection against moisture and soil chemistry. Void forms, vapor barriers, and drainage provisions are routinely integrated so the beam performs over the life of the building. Where expansive or collapsible soils are present, the grade beam's ability to span clear of the ground is precisely what protects the structure from seasonal soil movement.

The grade beam is most often confused with a conventional footing, and the distinction is fundamental. A footing bears directly on the soil beneath it and spreads load over an area of ground; it depends on the soil immediately below to carry weight. A grade beam, by contrast, is designed to span between supports and often assumes the soil directly beneath it carries little or no load at all. In practice a Footing pushes down on the earth, while a grade beam bridges over it and delivers load to piles or piers.

A second common mix-up is between a grade beam and an ordinary structural Beam in the superstructure. Both are flexural members that resist bending, but their location and loading differ. A floor or roof beam sits within the building frame and carries gravity loads from slabs and Joist systems, whereas a grade beam operates at the foundation level and interacts with soil, deep foundations, and ground-floor slabs. The grade beam also frequently carries wall loads distributed along its length rather than point loads from framing.

Finally, grade beams are sometimes mistaken for a Pile Foundation cap. A pile cap is a thick concrete block that ties together a cluster of piles beneath a single column and spreads that concentrated load among them; it is essentially a stubby, deep pad. A grade beam is a slender, spanning member that links multiple caps or piers in a line. The two elements often appear together and are cast monolithically, which is why they are easily conflated, but their structural jobs are distinct: the cap gathers piles at a point, and the grade beam carries load between those points.

What is the difference between a grade beam and a footing?

A footing bears directly on the soil and spreads load over an area of ground, relying on the earth beneath it. A grade beam spans between piles or piers and often assumes the soil directly below carries no load, transferring weight to deeper supports instead.

When is a grade beam used instead of a strip footing?

Grade beams are used when surface soils are too weak, expansive, or collapsible to bear loads directly. In those conditions the beam spans over the problematic ground to competent support points such as piles or drilled piers.

Does a grade beam need reinforcement?

Yes. Because a grade beam works in bending as it spans between supports, it requires longitudinal rebar to resist tension and stirrups to resist shear, much like any structural concrete beam.

Can a grade beam sit directly on soil?

It can, but it is frequently cast over a void form or crushable material on expansive soils so that swelling ground cannot lift and crack the foundation. Its structural design typically does not depend on that soil for support.
