Diaphragm.

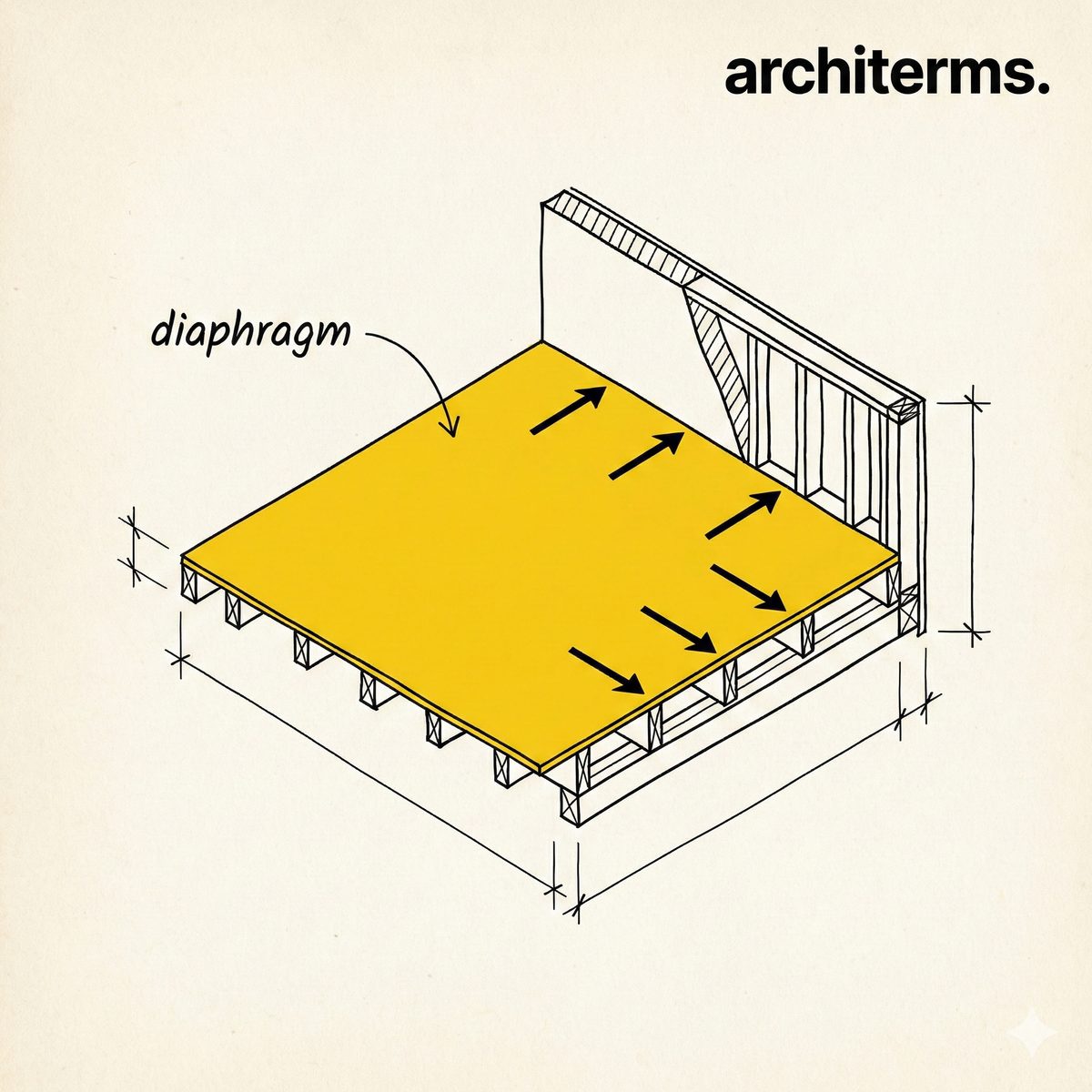

A diaphragm is the part of a structure that resists sideways forces by acting as a stiff, flat plate. Most often it is a floor or a roof: as well as carrying the usual downward (gravity) loads, that horizontal surface also gathers up the horizontal push of wind or an earthquake and delivers it to the vertical elements that resist it — the shear walls, braced frames, or moment frames. Without a working diaphragm, those walls would be a set of disconnected fins; the diaphragm is what makes them act together.

Think of a diaphragm as a deep, flat beam lying on its side. Its job is to span between the supporting walls and not deform too much under load. Floors and roofs made of concrete slabs, composite metal decking, or braced timber sheathing all behave as diaphragms, and the connections between the diaphragm and the walls are some of the most important — and most carefully checked — details in seismic and wind design.

A diaphragm is a structural assembly, typically a floor or roof, that acts in its own plane as a horizontal beam or plate to collect lateral loads (wind, seismic) and transfer them to the vertical lateral-force-resisting system. It has a web — the slab or deck that carries shear — and chords and collectors at its edges that carry tension and compression, exactly like a beam turned flat. Diaphragms are classified as rigid or flexible depending on how much they deflect relative to the supporting walls.

The diaphragm became a formal design concept as steel and reinforced-concrete framing replaced load-bearing masonry in the late 19th and 20th centuries. Once floors were thin slabs and decks rather than massive walls, engineers had to think explicitly about how horizontal forces travelled through them. Major earthquakes repeatedly exposed buildings whose floors and roofs were not properly tied to their walls, and modern seismic codes responded by making diaphragm action, chord reinforcement, and diaphragm-to-wall connections central to the design of almost every building.

The diaphragm is invisible but decisive in how a building survives wind and earthquakes:

• —Completes the lateral load path: floor or roof → shear walls or frames → foundation. A clear, continuous path is the whole point of structural design.

• —Ties the building together: it links otherwise separate columns and walls so they share lateral load instead of failing one at a time.

• —Comes in rigid and flexible forms: a concrete slab is a rigid diaphragm; light timber or steel decks are flexible — they distribute load to the walls differently.

• —Depends on its edges: chord members along the edges (often the beams or slab edges) carry the tension and compression, while collectors drag the load into the walls.

• —Is weakened by openings: stairs, atria, and large voids cut the plate and must be detailed so the diaphragm still works around them.

• —Diaphragm vs. shear wall: a diaphragm is the horizontal plane (floor or roof) that collects lateral load; a shear wall is the vertical element that receives it and carries it down to the foundation.

• —Diaphragm vs. slab: a slab is the concrete floor; it ACTS as a diaphragm when it also resists in-plane lateral load. Not every diaphragm is concrete — timber and steel decks count too.

• —Rigid vs. flexible diaphragm: a rigid diaphragm distributes load to the walls by their relative stiffness; a flexible diaphragm distributes it by tributary area.

• —Diaphragm vs. bracing: bracing is the diagonal members within a frame; a diaphragm is the planar floor or roof. Both resist lateral load, but in different orientations.

What is a diaphragm in structural engineering?

A diaphragm is a horizontal structural element, usually a floor or roof, that acts like a flat beam in its own plane. It collects lateral loads from wind or earthquakes and transfers them to the vertical elements — shear walls or frames — that carry them down to the foundation.

What is the difference between a diaphragm and a shear wall?

A diaphragm is the horizontal plane (floor or roof) that gathers lateral load and spans between supports. A shear wall is the vertical element that receives that load from the diaphragm and carries it down to the foundation. The diaphragm collects; the shear wall resists and delivers.

What is the difference between a rigid and a flexible diaphragm?

A rigid diaphragm, such as a concrete slab, barely deflects, so it distributes lateral load to the supporting walls in proportion to their stiffness. A flexible diaphragm, such as a light timber or metal deck, deflects more and distributes load to the walls by tributary area instead.

Is a floor slab a diaphragm?

A floor slab acts as a diaphragm when it is designed to resist in-plane lateral forces and transfer them to the walls or frames, which most building floors do. So a slab is usually both a gravity floor and a structural diaphragm at the same time.

Why are diaphragms important in earthquakes?

In an earthquake the ground shakes the building sideways, and the diaphragm is what ties the floors and roof to the walls so the whole structure moves as one and the load reaches the elements that can resist it. Poor diaphragm connections are a common cause of earthquake damage, which is why codes scrutinize them.
